Instrument Features:

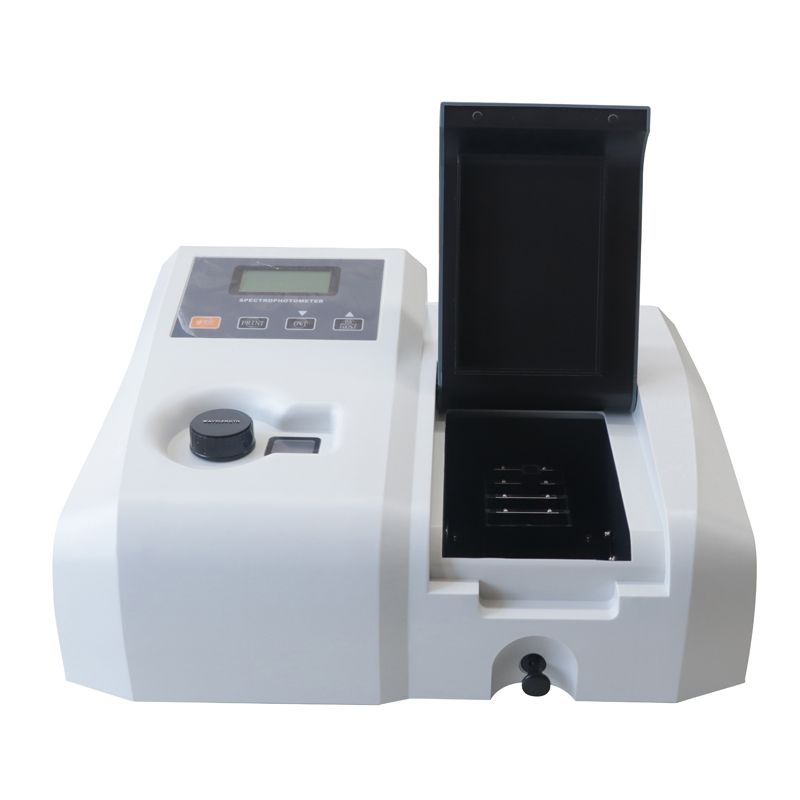

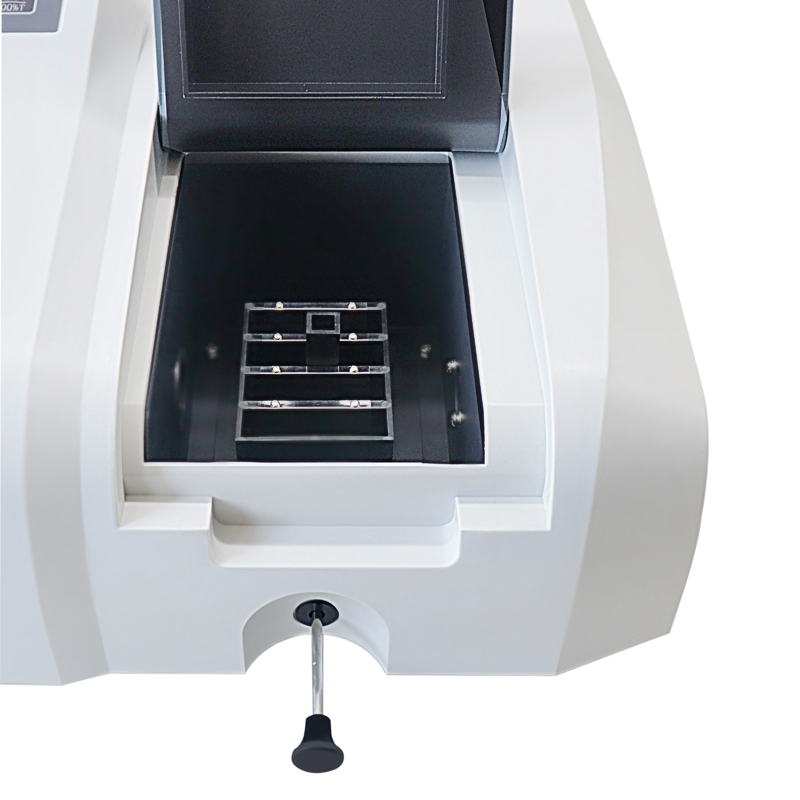

- A spacious sample compartment can accommodate 5-100mm cuvettes.
- Can be directly connected to a dedicated printer (optional) for data printing.
- Key components are all imported, ensuring measurement accuracy and precision.
- Digital display of measurement values.
- The instrument uses the latest microcomputer processing technology, making operation simple.
- Automatic shutter protects the photoelectric sensor’s service life and makes instrument testing simpler.
Technical Parameters：
Instrument Model: UV752N
Optical System: Achromatic (1200 lines/mm grating)
Wavelength Range: 195-1020nm
Wavelength Accuracy: ±2nm
Spectral Bandwidth: 4nm
Wavelength Repeatability: 1nm
Photometric Accuracy: 0.5%T
Photometric Repeatability: 0.2%T
Photometric Range: 0-200%T, -3-3A
Drift: ≤0.2%T
Baseline Linearity: ±0.002A/h @500nm
Noise: 100% ≤0.3%T
Stability: ±0.002A/h @500nm
Operating Modes: T, A, C
Display Range: 0-200%T, -0.3-3A
Display System: 4-digit LCD LED display

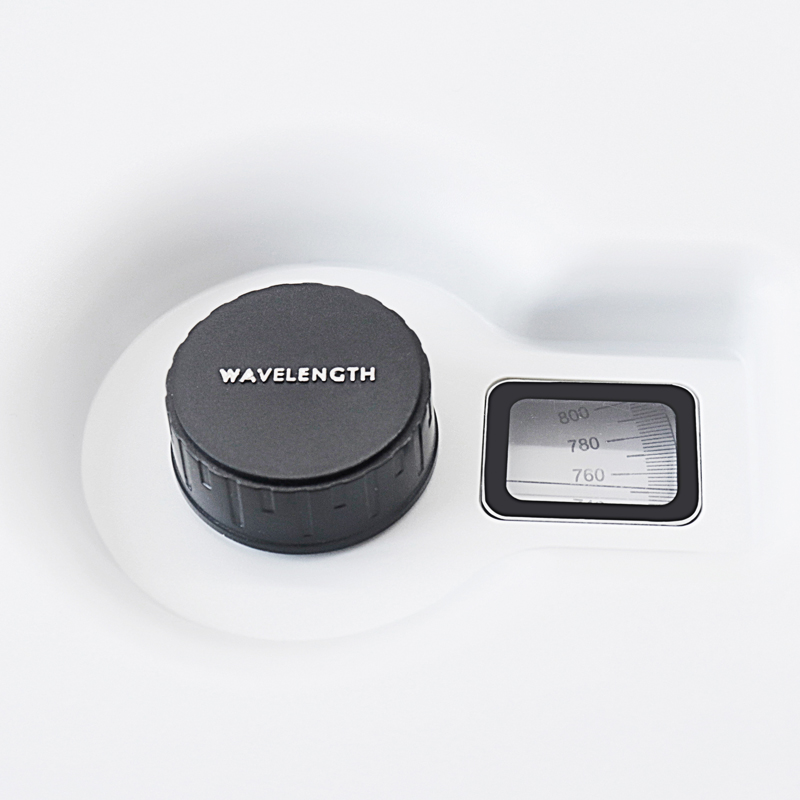

Wavelength Drive: Manual
Printer (Interface): Thermal printer (parallel port) optional
Source (Lamp): Imported Tungsten Lamp, Imported Deuterium Lamp
Net Weight: 12kg
Lamp Switching Mode: Automatic
