Features:

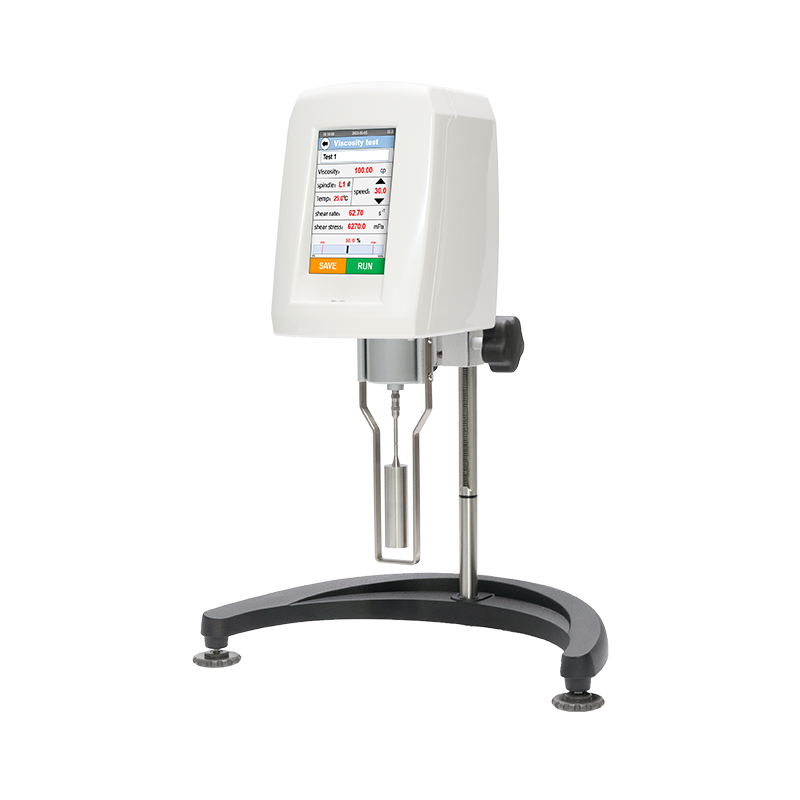

JingYuan technology new touch screen viscometer is an intelligent instrument based on the ARM technology, and it is the first full touch screen viscometer in China replacing the traditional operation mode with keys and a small-size LCD. This series of viscometer is integrated with a high-performance step motor and a driver running accurately and stably as per the program setting, and the motor drives the rotor to rotate through a torque sensor at a constant speed. When the rotor meets any viscous resistance in the liquid tested, the resistant force will be fed back to the torque sensor, processed and computed internally, and then displayed as a viscosity value of the liquid tested.
Main technical performance:
| Type | NDJ-8T |
| Test Range(cP) | 1*—2,000,000 |
| Rotation Rate (RPM/min) | 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 |
| Test Accuracy | ≤±1% (Newtonian fluid FS) |
| Reproducibility | ± 0.3% |
| Control/Display Mode | 5-inch color touch screen |
| Viscosity Value Resolution | 0.01cP |
| Rotor | L1#, L2#, L3#, L4# |
| Demand Amount of Test Sample | 300—400mL (According to different rotators) |
| Display Information | Dynamic viscosity, kinematic viscosity, measurement time, temperature, torque%, rotation rate, rotor, shear rate, shear stress |
| Test Data | Support the storage of 30-group data |
| Viscosity Curve | Support real-time display and measurement of Visibility Curve |
| Stop Mode | Manual/automatic (timing measurement) |
| Overall Dimensions | 300*300*450 mm (Length * Width * Height) |
| Net Weight | 4.5kg |
| Power Supply | input AC100V to 240V, output: DC DC12V 2A |
| Power | 40W |
