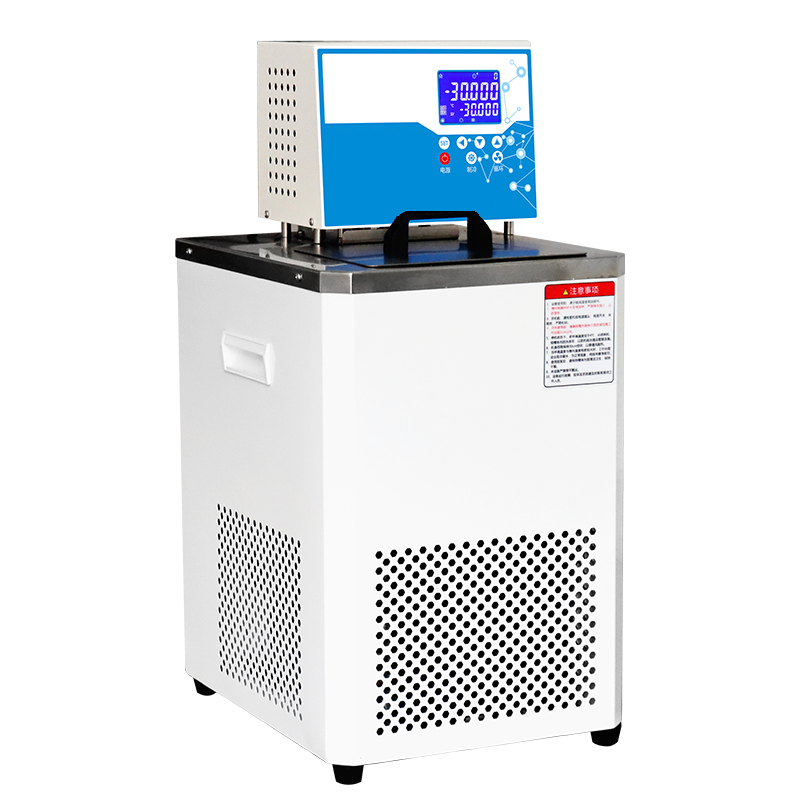

low-temperature thermostatic circulation bath

+ Free Shipping

The CCB series low-temperature thermostatic bath is a high-precision constant temperature source equipped with self-contained refrigeration and heating functions. It can conduct constant temperature experiments in the built-in water bath or be connected to other equipment via hoses for use as a constant temperature source. It provides users with a controlled, uniform, and constant temperature field source during operation, enabling constant temperature testing or experiments on samples or manufactured products. It can also serve as a direct or auxiliary heating or cooling source.

Category: Water Bath

Description
Reviews (0)

Main Features:

Hidden push-pull drainage pipeline for convenient liquid drainage.
Built-in BILON next-generation temperature control program to ensure stable equipment operation.
Fully enclosed compressor unit refrigeration, with multiple protection devices such as overheat and overcurrent protection in the refrigeration system.
The circulation pump can draw the temperature-controlled liquid from the bath to establish a second constant temperature field.
The cooled liquid in the bath can be drawn externally to cool experimental containers outside the device, or low-temperature and constant temperature experiments can be conducted directly in the bath.
Equipped with an XMT analog-digital PID automatic control system and digital temperature display.
The inner tank and tabletop are made entirely of stainless steel, ensuring cleanliness, hygiene, aesthetics, and corrosion resistance.

Specification:

Model	Temperature range (℃)	temperature fluctuation(℃)	capacity (mm)	circular flow(L/min)	Size of open(mm)
CCB5-5-6	-5~100	±0. 05	280×220×120	6	180×140
CCB5-10-6			280×220×165	6	180×140
CCB5-15-6			280×220×250	6	180×140
CCB5-20-6			400×320×180	6	300×220
CCB5-30-13			400×325×240	13	300×220
CCB10-5-6	-10~100	±0.05	280×220×120	6	180×140
CCB10-10-6			280×220×165	6	180×140
CCB10-15-6			280×220×250	6	180×140
CCB10-20-6			280×250×280	6	235×160
CCB10-30-13			400×325×230	13	310×280
CCB20-5-6	-20~100	±0.05	250×200×150	6	180×140
CCB20-10-6			250×200×200	6	180×140
CCB20-15-6			300×250×200	6	235×160
CCB20-20-6			400×320×180	6	300×220
CCB20-30-13			400×325×240	13	300×220
CCB30-5-4	-30~100	±0.1	280×220×100	4	180×140
CCB30-10-4			280×220×120	4	180×140
CCB30-15-4			280×220×165	4	180×140
CCB30-20-4			280×220×250	4	180×140
CCB30-30-4			400×320×180	4	300×220
CCB30-30-13			400×320×240	13	300×220
CCB40-5-4	-40~100	±0.1	280×220×120	4	180×140
CCB40-10-4			280×220×150	4	180×140
CCB40-15-4			280×220×165	4	180×140
CCB40-20-4			280×220×250	4	180×140
CCB40-30-4			400×320×180	4	300×220
CCB40-30-13			400×320×240	13	300×220
