Function
★ Internal auto calibration(JY-FA-EN)
★ External calibration(JY-FA-E)
★ Electromagnetic force sensor
★ LCD(White back light with black font)
★ Tare function/Counting/Unit conversion
★ Sensitivity/Speed set/Percentage
★ Density function
★ Accumulation function/peak hold/Upper and lower set
★ Dynamic weighing /Net and Gross/Clock function(optional)
★ Print function(baud rate setting,Continuous communication or press communication)
★ Calibration time setting
★ Overload alarm/JY-FAult alarm/Level indicator
★ Option:Density kit (solid/liquid)/RS485/USB/printer
Product specifications

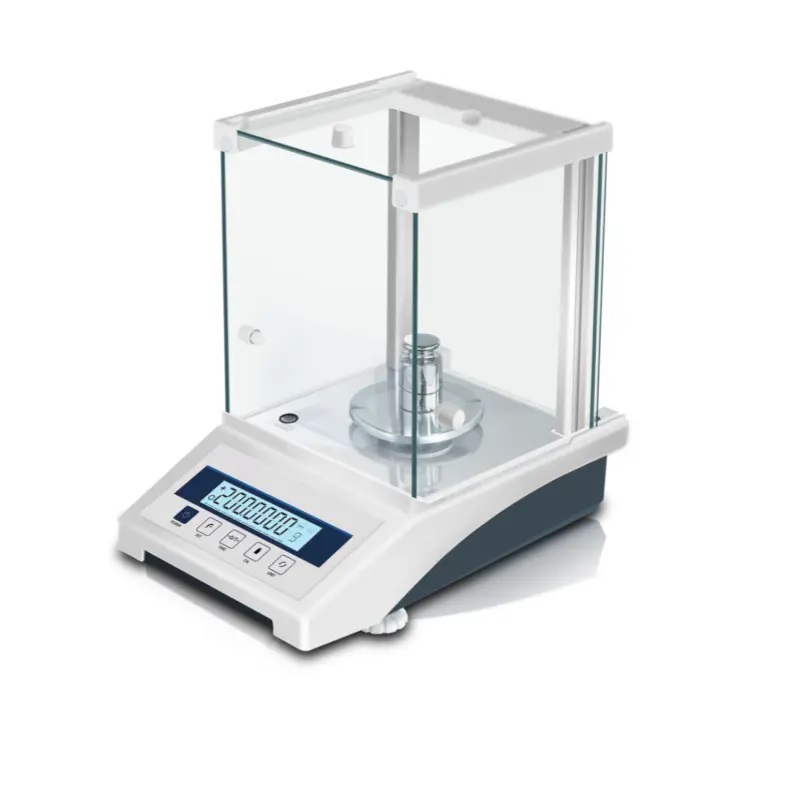

| JY-FA-E（N） Series | ||||||
| Ｍodel | JY-FA1004E(N) | JY-FA1104E(N) | JY-FA1204E(N) | JY-FA2004E(N) | JY-FA2104E(N) | JY-FA2204E(N) |
| Capacity(g) | 100g | 110g | 120g | 200g | 210g | 220g |
| Resolution(g) | 0.0001g | |||||
| Min weighing(g) | 0.0004g | |||||
| Stable Time | ≤3s | |||||
| Display | LCD(white back light with black font) | |||||
| Pan size | Φ80mm(Standard)、Φ90mm(Optional) | |||||
| Operation temp | 5-35℃ | |||||
| Repeat ability | ±0.0002g | |||||
| Liner | ±0.0003g | |||||
| Dimension | 300X200X295mm | |||||
| Draft shield size | 180x175x200mm | |||||
| LCD Size | 96x24mm | |||||
| Cal.weight | External（Internal） Calibration | |||||
| InterJY-FAce | RS232C(Standard)/ USB/Printer(Optional) | |||||
| Packing size | 425x320x415mm | |||||
| G . weight | 6.0kg | |||||
