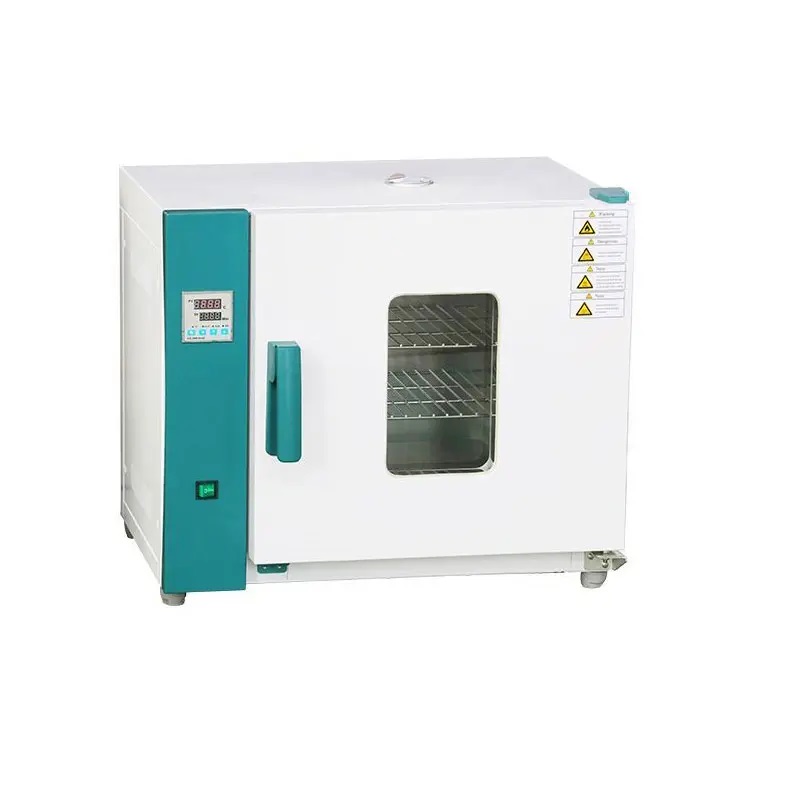

Characteristics:
- Horizontal air circularly by double Air ducts, high efficiency and high Uniformity.
- PID controller, with over-temperature protection function.
- With fan switch,LED digital display,high temperature blast motor.
4.New anti-hot handle
JY-DOL-BE series have the following characteristics other than the above functions
- LCD temperature controller.
- 4 grades speed fan, adjustable for different requirements.
- Over-temperature protection system.
- High precision digital independent temperature limiter.
5.304:SUS304 Stainless Steel Body.
Main Technical Parameters:
| Model | JY-DO-30B | JY-DO-45B | JY-DO-65B | JY-DO-85B | JY-DO-125B | JY-DO-230B | JY-DO-625B | |
| Cycle Mode | Forced convection | |||||||
| Function | Temp. Range | RT+10-300℃ | ||||||
| Temp. Resolution Ratio | 0.1℃ | |||||||
| Temp. Motion | ±1℃ | |||||||
| Temp. Uniformity | ±2.5% | |||||||
| Structure | Inner Chamber | Mirror Stainless Steel | ||||||
| Outer Shell | Cold rolling steel electrostatic spraying exterior | |||||||
| Insulation layer | High quality rock wool board(with CE) | |||||||
| Heater | Stainless steel heater | |||||||
| Power rating | 0.8kW | 1.2kW | 1.6kW | 2.0kW | 2.3kW | 3.0kW | 5.0kW | |
| Exhaust hole | Φ35mmtop(with function of test hole) | Rear exhaust | Top double exhaust | |||||
| Controller | Temp. control mode | Two temperature section PID intelligent | ||||||
| Temp. setting mode | Touch button setting | |||||||
| Temp. display mode | B model: Measuring temperature: display on the four digital tubes upper row, setting temperature: display on the lower row | |||||||
| BE model: Measuring temperature display on upper LCD screen， setting temperature display on the lower row | ||||||||
| Timer | 0-9999min(with timing wait function) | |||||||
| Operation function | Fixed temperature operation, timing function, auto stop. | |||||||
| Additional function | B model: Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | |||||||
| BE model: High precision digital independent temperature limiter, 4 grade 3speed adjustable-speed fan (230 and 625model BE without fan speed adjustor),sensor deviation correction, temperature overshoot self- tuning, internal parameter locking, power-off parameter memory | ||||||||
| Sensor | PT100 | |||||||
| Specification | Inner Chamber size(W*L*H)(mm) | 310*310*310 | 350*350*350 | 400*360*450 | 450*420*450 | 500*450*550 | 600*500*750 | 660*760*1250 |
| Exterior size (W*L*H)(mm) | 450*500*690 | 490*540*730 | 540*550*830 | 590*610*830 | 640*640*930 | 735*835*1115 | 974*895*1677 | |
| Packing size (W*L*H)(mm) | 540*575 *855 | 580*615 *895 | 635*625 *995 | 680*685 *1000 | 710*730 *1100 | 857*885*1287 | 1061*1000*1885 | |
| Volume | 30L | 45L | 65L | 85L | 125L | 230L | 625L | |
| Shelf number | 5 | 6 | 8 | 8 | 11 | 17 | 11 | |
| Load per rack | 15kg | |||||||
| Shelf space | 40mm | 100mm | ||||||
| Power rating (50/60HZ) | AC220V/3.6A | AC220V/5.5A | AC220V/7.2A | AC220V/9.0A | AC220V/10.5A | AC220V/13.6A | AC380V/13.2A | |
| NW/GW (kg） | 33/37 | 37/43 | 44/49 | 50/56 | 60/66 | 94/120 | 150/190 | |
| Accessory | Shelf | 2 | ||||||
| Shelf frame | 4 | |||||||
| optional accessories | B model: Spare Shelf; BE model: Spare Shelf, RS485 Interface, Printer, Program controller, U-disk storage; 3.5-inch color touch screen temperature controller | |||||||
