Common Features:
- Integrates constant temperature incubation and shaking functions into one device, offering multiple uses while saving cost and space.
- Equipped with a three-dimensional self-balancing eccentric drive mechanism for smooth, quiet operation.
- Features intelligent audible and visual alarms with parameter memory function to simplify operation and avoid repetitive setup.
- Large backlit LCD screen displays real-time temperature (±0.1°C accuracy) and oscillation speed (±1 rpm accuracy).
- Utilizes a microprocessor-based PID control system for stable and precise temperature regulation.
- Driven by a DC motor with a wide speed range, constant torque, and maintenance-free operation.
- Programmable timer supports long-duration runs (0–9999 minutes/hours) with automatic shutdown and alarm upon completion.
- Selected models include a safety cover-stop function that halts operation when opened.

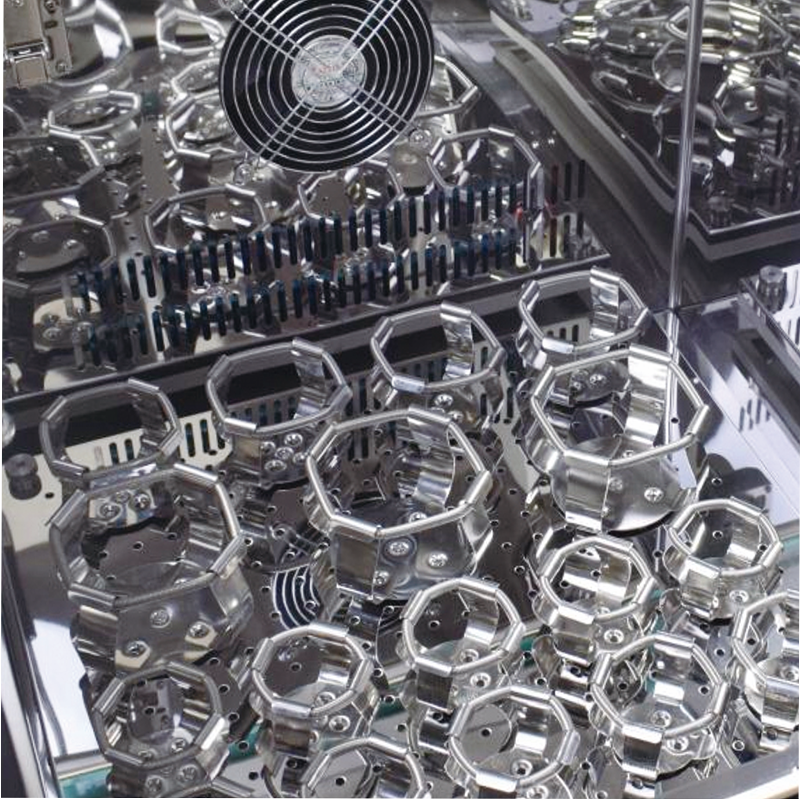

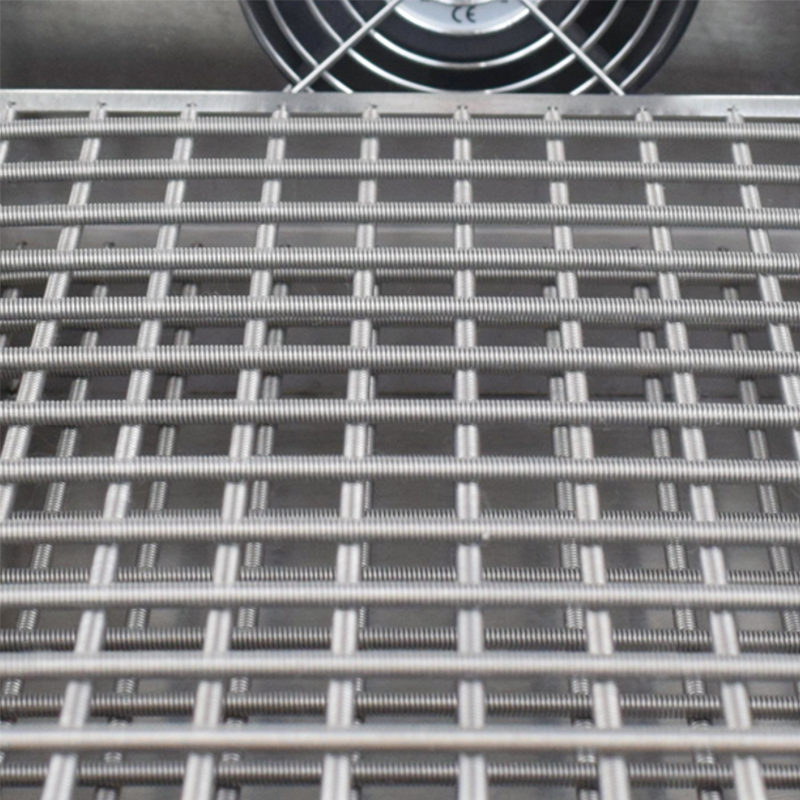

- Constructed with a high-quality stainless steel inner chamber and shaking platform, compatible with various detachable clamps for flexible vessel accommodation.
are available for free combination.
Technical Parameters
| Product Model | KYC-130C | KYC-100B | QYC-200 |
| Rotation Speed | 40-300 rpm | ||
| Speed Accuracy | ±1 rpm | ||
| Orbital Diameter | Φ26 (mm) | ||
| Maximum Capacity | 100ml×9 or 250ml×6 | 100ml×16 or 250ml×12 or 500ml×8 or 1000ml×4 | 100ml×20 or 250ml×16 or 500ml×8 or 1000ml×6 |
| Platform Size (mm) | 290×250 | 400×250 | 450×450 |
| Standard Configuration | 100ml×9 | 500ml×3, 250ml×3, 100ml×9 | 500ml×3, 250ml×3, 100ml×10 |
| Timer Range | 1-9999 minutes | ||
| Temperature Range | RT+5-50°C | 4-60°C | |
| Temperature Resolution | 0.1°C (constant temperature state) | ||
| Temperature Uniformity | ±0.5°C | ||
| Platform Load | 1 kg | ||
| Working Dimensions (mm) | 330×480×180 | 420×480×310 | 360×480×300 |
| External Dimensions (mm) | 540×480×380 | 620×600×530 | 740×700×530 |
| Power | 350W | 400W | 600W |
Note: The above data is for reference only under the following conditions: ambient temperature 20°C, ambient humidity 50% RH.
