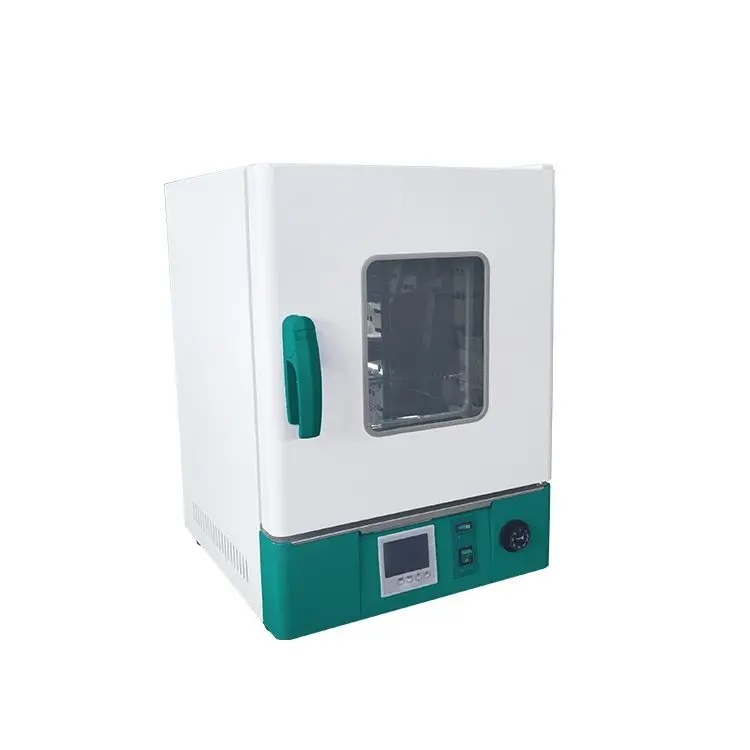

Characteristics:
- In the workroom, the hot air is convective naturally and cyclically.
- PID micro-computer intelligent temperature controller with functions of over-temperature protection.
- Standard highlight LED instrument running light.
- New anti-hot handle.
JY-DOL-BE series have the following characteristics other than the above functions.
- LCD temperature controller.
- Over- -temperature protection system.
- High precision digital independent temperature limiter.
Main Technical Parameters:
| Model | JY-DO-30B | JY-DO-45B | JY-DO-65B | JY-DO-85B | JY-DO-125B | |
| JY-DOL-30BE | JY-DOL-45BE | JY-DOL-65BE | JY-DOL-85BE | JY-DOL-125BE | ||
| Cycle Mode | Natural convection | |||||
| Function | Temp. Range | RT+10-300℃ | ||||
| Temp. Resolution Ratio | 0.1℃ | |||||
| Temp. Motion | ±1℃ | |||||
| Temp. Uniformity | ±3.5% | |||||
| Structure | Inner Chamber | Mirror Stainless Steel | ||||
| Outer Shell | Cold rolling steel electrostatic spraying exterior | |||||
| Insulation layer | High quality rock wool board(with CE) | |||||
| Heater | Nickel chromium alloy heating wire | |||||
| Power rating | 0.8kW | 1.2kW | 1.6kW | 2.0kW | 2.5kW | |
| Exhaust hole | Φ35mmtop(with function of test hole) | |||||
| Controller | Temp. control mode | Two temperature section PID intelligent | ||||
| Temp. setting mode | Touch button setting | |||||
| Temp. display mode | B model: display on LED | |||||
| BE model: display on upper LCD | ||||||
| Timer | 0-9999min(with timing wait function) | |||||
| Operation function | Fixed temperature operation, timing function, auto stop. | |||||
| Additional function | B model: Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | |||||
| BE model: High precision digital independent temperature limiter, sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | ||||||
| Sensor | PT100 | |||||
| Safety Device | B type: Over temperature sound-light alarm; BE type: Digital Independent Temp. limiter, Over temperature sound-light alarm. | |||||
| Specification | Inner Chamber size(W*L*H)(mm) | 310*310*310 | 350*350*350 | 400*360*450 | 450*420*450 | 500*450*550 |
| Exterior size (W*L*H)(mm) | 460*510*695 | 500*550*735 | 550*550*840 | 590*610*830 | 636*680*915 | |
| Packing size (W*L*H)(mm) | 550*585*845 | 590*625*885 | 640*635*985 | 690*695*985 | 740*725*1085 | |
| Volume | 30L | 45L | 65L | 85L | 125L | |
| Shelf number | 5 | 6 | 8 | 8 | 11 | |
| Load per rack | 15kg | |||||
| Shelf space | 40mm | |||||
| (50/60HZ)Current rating | AC220V/3.6A | AC220V/5.5A | AC220V/7.2A | AC220V/10.5A | AC220V/10.5A | |
| NW/GW (kg） | 33/37 | 37/43 | 44/49 | 50/60 | 60/66 | |
| Accessory | Shelf | 2 | ||||
| Shelf frame | 4 | |||||
| optional accessories | B model: Spare Shelf; BE model: Spare Shelf,RS485 Interface, Printer, Program controller, U-disk storage; SUSS304 body, 3.5-inch color touch screen tmperature controller. | |||||
